Consumer Electronic Raw Subwoofer 0.5W 8ohm Speaker Precision High Tech

Name: Consumer Electronic Raw Subwoofer 05W 8ohm Speaker Precision High Tech
Brand: YUESEN
Price: 0.2 USD

Quality Consumer Electronic Raw Subwoofer 0.5W 8ohm Speaker Precision High Tech wholesale

Brand Name : YUESEN

Model Number : YD30-2S

Certification : ISO2000, RoHS, REACH

Place of Origin : China, Jiangsu, Changzhou

MOQ : 10kpcs

Price : $0.2/pcs~$1/pcs

Payment Terms : T/T, Western Union

Supply Ability : 1-1.5million/month

Delivery Time : 2-4 weeks

Packaging Details : Carton

Product Name : Mylar Speaker

Size : 30mm

Power : 0.5W

Impedance : 8ohm

Sound Pressure Level : 92±2dB

Frequency Response : F0-20kHz

Contact Now

YD30-2S, consumer electronic Mylar Speaker 0.5W, 8ohm, with CE certificate

We are a high-tech enterprise which integrates research, design, production and sales. Our products are widely used for TV, Mobile devices such as notebook, GPS, mobile DVD and so on.

General Specifications:

Dimensions	30mm
Rated Input Power	0.5W
Maximum Input Power	0.8W
Sound Pressure Level	92±3dB 0.1M/0.1W at 1.2, 1.5,1.8,2.0KHz
Impedance	8Ω±20%(at 1V)

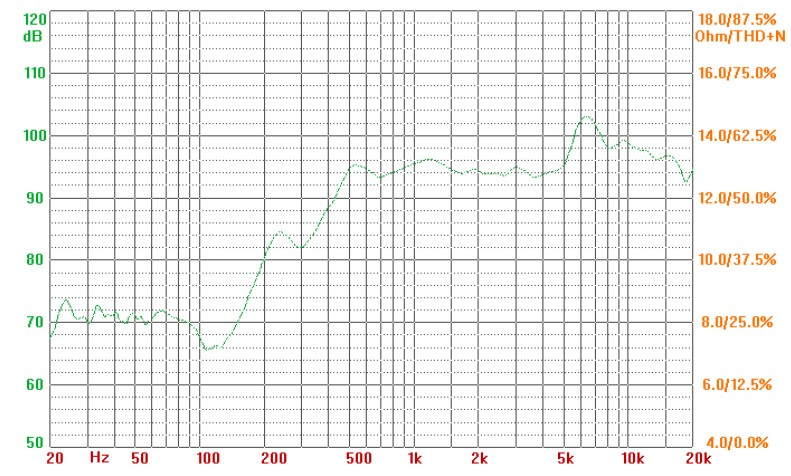

Frequency Response	F0~20kHz(-10dB)
Distortion	5%Max
Noise	Must be normal. Sine wave 2V
Heat Test	Shall be normal after test. 80℃ 96 hours
Cold Test	-20℃ 96h
Humidity Test	Shall be normal after test. 40℃ 90~95%RH 96 hours
Load Test	Shall be normal after test. Input Power: 0.5W White Noise Duration: 96 hours
Polarization	When a positive DC current is applied to the terminal marked(+), diaphragm shall move forward

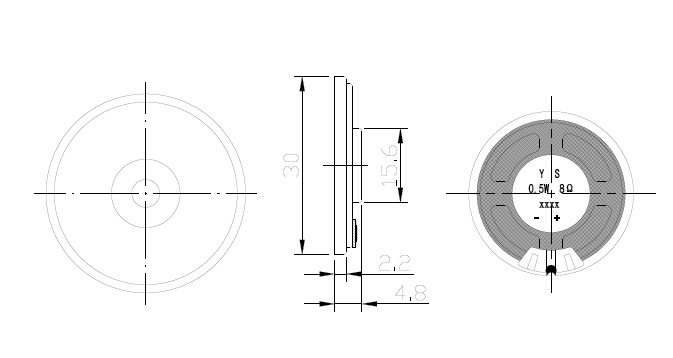

Drawing:

Consumer Electronic Raw Subwoofer 0.5W 8ohm Speaker Precision High Tech

Product Processing:

Product Tags:

mylar cone speaker

precision sound speakers

Consumer Electronic Raw Subwoofer 0.5W 8ohm Speaker Precision High Tech Images
